Munsch TNP-KL Vertical Pump



Vertical non-metallic pump with plain bearing

The Munsch TNP-KL vertical chemical pump is specifically designed to pump acids, alkalis, chemically contaminated fluids, corrosive media and effluents – in the presence or in the absence of solids – directly from pump sumps, pump tanks, storage tanks or basins. The pump is available for wet-end and dry-end arrangement. Labyrinth seal with single or double mechanical seal arrangements.

The setting depth of up to 3.000 mm can be extended to max. 4.600 mm by a suction pipe. Setting depths and connecting dimensions can be matched to the specific installation conditions.

Typical applications include the chemical industry, electroplating plants, steel and stainless-steel pickling lines, evaporation and regeneration units, flue gas cleaning systems downstream of waste incinerators as well as exhaust air scrubbing and industrial waste water treatment.

Available in PP, PE-UHMW as well as PVDF. Also available with ATEX rating if required as the pumps can meet the requirements of EU Directive No. 94/9/EG

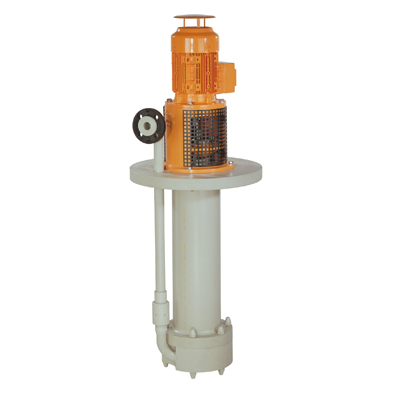

101 Munsch TNP KL image 1
101 Munsch TNP KL image 1

Performance Data

  • Pump capacity: up to 700 m³/h
  • Total differential head: up to 90 m
  • Operating temperature [t]: 0°C up to +100 °C
  • Operating pressure [p]: up to 10 bar
  • Diameter of discharge nozzle: DN 25 up to DN 150
  • Setting depths: 400mm to 3000mm (4600mm with suction pipe)
  • Drive rating [P]: up to 55 kW

Features and Benefits

  • Pump casing, casing cover and suspension pipe made of solid plastic to give maximum compatibility corrosive liquids
  • The column pipe and discharge flange can be rotated to virtually any position
  • Standard vertical setting depth can be varied in steps of 100m, intermediate depth also available
  • Impeller available as closed, semi-open and vortex
  • Anti-friction bearing integrated into the bearing lantern allows high loads to the shaft
  • Models
  • Materials
  • Performance Charts
  • Optional Extras
  • 50-32-160
  • 50-32-200
  • 65-40-160
  • 65-40-200
  • 80-50-200
  • 80-50-250
  • 80-50-315
  • 100-65-200
  • 100-65-250
  • 100-65-315
  • 125-80-200
  • 125-100-200
  • 125-100-250
  • 150-125-200
  • 150-125-250
  • 200-150-250
  • Main material: Polypropylene, PE-UHMW and PVDF
  • Impeller: Polypropylene, PE-UHMW and PVDF
  • Shaft: Stainless steel (coated)
  • Plain bearing: Silicon carbide
  • Secondary seal: FPM
  • 50-32-160
  • 50-32-200
  • 65-40-160
  • 65-40-200
  • 80-50-200
  • 80-50-250
  • 80-50-315
  • 100-65-200
  • 100-65-250
  • 100-65-315
  • 125-80-200
  • 125-100-200
  • 125-100-250
  • 150-125-200
  • 150-125-250
  • 200-150-250

See performance charts

  • Suction strainer
  • Suction pipe up to a length of 1600 mm
  • External flushing of plain bearing
  • Mounting plate to specific dimensions
  • Suction strainer and suction pipe
  • Motor overload switch
