World Chemical GVF Self Priming



Self-Priming Magnetic Drive Pumps

The GVF E-CTFE self-priming magnetic drive pump range is ideally suited for a wide variety of applications. The compact and powerful design and manufacture of the GVF units means a 5-metre suction lift can be achieved in 2 minutes. The GVF range can be used with long horizontal & vertical suction pipework and is ideal for emptying tanks without a bottom outlet e.g. iso-tankers.

Internationally patented valve-less design ensures air release and a siphon break when the unit stops. This means that liquid remains in the auxiliary tank and no further priming is required. A unique rotating flange design allows easy connection & installation. Minimum maintenance and all parts can be replaced individually.

Compatible with hazardous liquids, carbonated liquids with potential for air lock and liquids with a high specific gravity.

The GVF range offers transfer volumes up to 27m3/hr and is fitted with a standard IEC motor frame for compatibility with a wide variety of motor options.

087 World Chemical GVF image 1

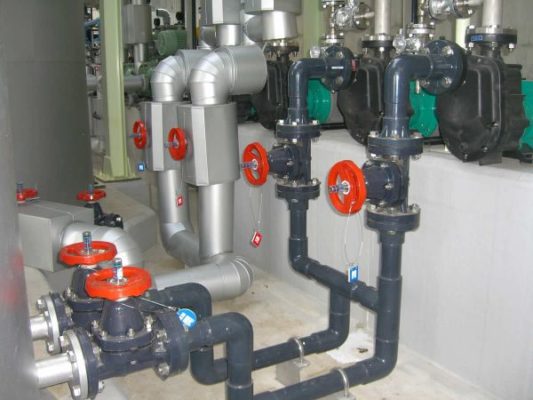

087 World Chemical GVF image 2
087 World Chemical GVF image 3
087 World Chemical GVF image 4
087 World Chemical GVF image 1
087 World Chemical GVF image 2
087 World Chemical GVF image 3
087 World Chemical GVF image 4

Performance Data

  • Pump capacity: up to 27 m³/h
  • Total differential head: up to 26 m
  • Operating temperature [t]: 0°C up to +80 °C
  • Operating pressure [p]: up to 5 bar (dependant on model)
  • Diameter of discharge nozzle: DN 25 up to DN 50
  • Drive rating [P]: up to 4 kW

Features and Benefits

  • Compact and powerful design
  • Ideal for chemical transfer from tanks with top entry only e.g. iso-tankers
  • 5 metre self-priming ability in 2 minutes (SG dependant)
  • Front casing includes drain point
  • Compatible with hazardous liquids and liquids that contain gas
  • High S.G capability
  • Long horizontal & vertical suction piping is possible
  • No need for foot valves
  • Models and max driving pressure
  • Materials
  • Performance Charts
  • YD-251GVF
  • YD-402GVF
  • YD-503GVF
  • YD-505GVF
  • Main material: E-CTFE
  • Impeller: E-CTFE
  • Shaft: Ceramic / Silicon carbide
  • Bearings: Silicon carbide / Ceramic
