Neptune Hydraulic Metering and Dosing Pumps



Accurate and precise hydraulic metering pumps

The Neptune range of hydraulic metering and dosing pumps can handle high viscosities, high pressures, large and small capacities through their reliable technology.

Typical industries include agriculture, energy, mining, chemical processing, and water/wastewater treatment.

Available Neptune Hydraulic Metering Ranges:

  • Neptune 500 Series – for common applications
  • Neptune 5005/5003 Series – for very low flow applications
  • Neptune 600 Series – high volume/high pressure applications
  • Neptune 6000 Series – low volume/high pressure applications
108 Neptune 500 series image 1
108 Neptune 500e image 2
108 Neptune 500vs image 3
108 Neptune 5005 image 4
108 Neptune 600 series image 5
108 Neptune 6000 series image 6
108 Neptune 500 series image 1
108 Neptune 500e image 2
108 Neptune 500vs image 3
108 Neptune 5005 image 4
108 Neptune 600 series image 5
108 Neptune 6000 series image 6

Neptune 500 Series

  • Variable Oil By-Pass stroke adjustment mechanism
  • EZE-Clean™ valve system allows valve removal for cleaning without disturbing the piping to the pump (Exceptions: 500-E series and 560 series in PVC and PVDF construction)
  • Available as simple or duplex configurations
  • Liquid head materials include: 316SS, C-20, PVC, PVDF
  • Flow range 3.05 to 355 LPH
  • Max temperature: 93°C
  • Max pressure: 206.8bar

Neptune 5005/5003 Series

  • Delivers accurate, repeatable flows at very low rates
  • Discharge pressures are higher than mechanical metering models
  • Typical applications include oil/gas production, oil recovery and refinery
  • Liquid head materials include:316SS, C-20, PVC
  • Flow range 1.3 to 1.9 LPH
  • Max temperature: 93°C
  • Max pressure: 206.8bar

Neptune 600 Series

  • Designed for high volume and high-pressure applications
  • Adjustable pump capacity through a micrometer dial that can be varied whilst the pump is operational
  • Liquid head materials include: 316SS, C-20, PVC and PVDF
  • Flow range 477 to 908 LPH
  • Max temperature: 93°C
  • Max pressure: 41.4bar

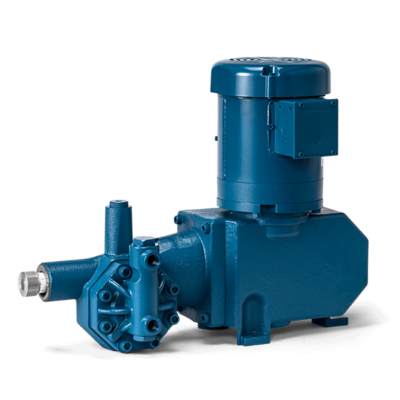

Neptune 6000 Series

  • Designed for low volume/high pressure applications
  • Adjustable pump capacity through a micrometer dial that can be varied whilst the pump is operational
  • Liquid head materials: 316SS
  • Flow range 16 to 106 LPH
  • Max temperature: 93°C
  • Max pressure: 275.8bar
  • Available ranges
  • Materials
  • Brochure Download
  • Optional Extras
  • Neptune 500 Series – for common applications
  • Neptune 5005/5003 Series – for very low flow applications
  • Neptune 600 Series – high volume/high pressure applications
  • Neptune 6000 Series – low volume/high pressure applications
  • Liquid head materials: 316SS, C-20, PVC and PVDF
  • Electronic stroke control
  • Double diaphragm leak detection
  • Variable speed control
  • Sodium hypochlorite gas bleed
