Plastic Air-Operated Double Diaphragm (AODD) Pumps
The All-Flo A & C Series general purpose AODD pumps are available in a polypropylene or PVDF housing.
Polypropylene is suitable for use with a wide variety of chemical applications.
PVDF offers stronger chemical resistance to both acids and bases, while offering a higher temperature and abrasion protection than polypropylene.
The air valve design means there are only 3 moving parts which do not require lubrication, this also provides ease of maintenance.
Diaphragms etc. are available in a wide range of materials to suit any application.
Self-priming, dry running as well as solids handling are further features.

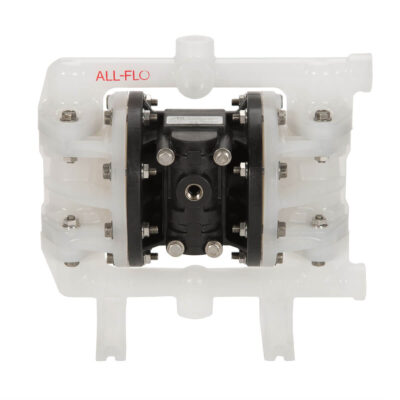

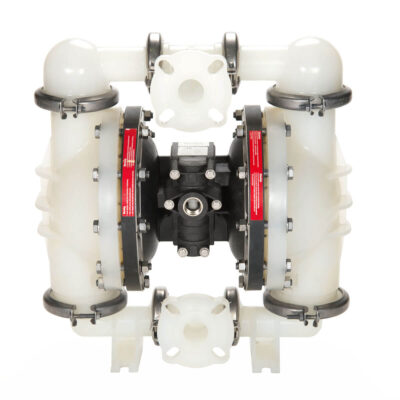

All-Flo plastic pumps
- Port sizes (inches): ¼ to 2
- Max particle size (mm) 1.6 to 6.4
- Max temperature (C) 121
- Max capacity (m3/hr) 0.1 – 36.3
- Suction head dry (mWC) 3 – 5.2
- Suction head wet (mWC 7.9 – 8.8
