FDA and Hygienic Air-Operated Double Diaphragm (AODD) Pumps
All-Flo’s ALL-PŨR® FDA (F Series) and Food Grade (G Series) pumps are ideal for many common food and beverage fluid transfer applications, including beer, wine, cider, and spirits.
F Series pumps offer a simple easy to maintain design with passivated stainless steel wet end parts.
G Series’ unique design offers gentle handling, integrated muffler and compact design.
Both F Series and G Series pumps are FDA, ATEX, and CE compliant.
F Series
- Air End Available in: Aluminium, Stainless Steel
- Diaphragm Available in: Hytrel®, PTFE, Santoprene®
- Liquid Connections are: Tri-Clamp®
- Wet Ends are: Passivated Stainless Steel

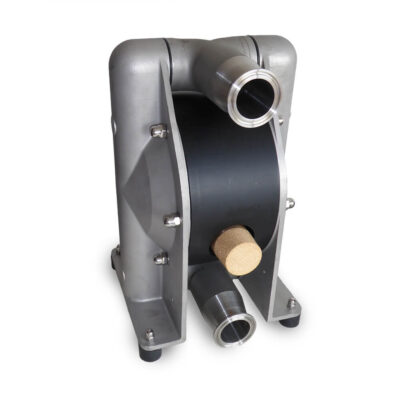

G Series
- Air End Available in: Conductive Polyethylene
- Diaphragm Available in: FDA EPDM, Integral PTFE
- Liquid Connections are: Tri-Clamp®
- Wet Ends are: 316 Stainless Steel
Performance Data
- Port sizes (inches): 1, 1½ and 2
- Max particle size (mm) 6.4
- Max temperature (C) 121
- Max capacity (m3/hr) 0.6 – 40
- Suction head dry (mWC) 5.2 – 7.4
- Suction head wet (mWC 9.1 – 9.7
- Port sizes (inches): 3/4, 1¼ and 2
- Max particle size (mm) 9 to 14
- Max temperature (C) 80
- Max capacity (m3/hr) 0.2 – 24
- Suction head dry (mWC) 2 – 3
- Suction head wet (mWC 9
