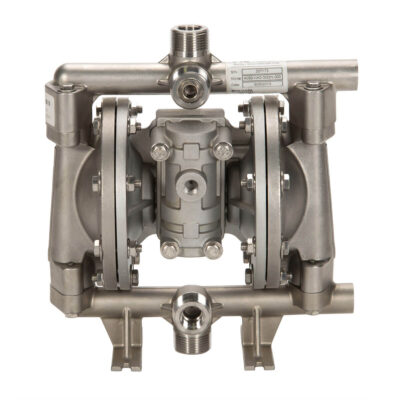

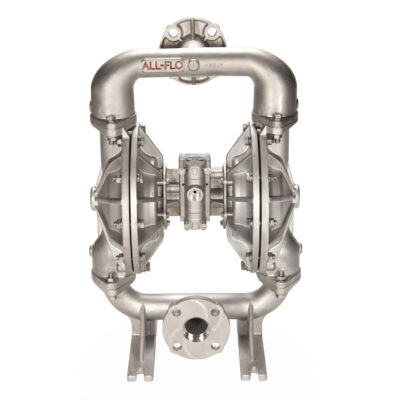

Metallic Air-Operated Double Diaphragm (AODD) Pumps
The All-Flo A Series general purpose AODD pumps are available in three materials: aluminium, anodized aluminium and stainless steel.
Aluminium and anodized aluminium offer medium corrosion and abrasion resistance.
Stainless steel is suitable for applications that require higher chemical and abrasion resistance.
The air valve design means there are only 3 moving parts which do not require lubrication, this also provides ease of maintenance.
Diaphragms etc. are available in a wide range of materials to suit any application.
Self-priming, dry running as well as solids handling are further features.
All-Flo metal pumps
- Port sizes (inches): ½ to 3
- Max particle size (mm) 3.2 to 11
- Max temperature (C) 121
- Max capacity (m3/hr) 0.25 – 53.4
- Suction head dry (mWC) 4.6 – 7.3
- Suction head wet (mWC 9.1 – 9.8
