ChemiGuard Chemical Dosing Cabinets



Safe on-site chemical containment

Part of the ChemiGuard range, the ChemiGuard Chemical Dosing Cabinets are available with 1, 2 or 3 doors and provide safe and secure housing for a wide range of chemical dosing and transfer systems. The internal components can be configured to meet customers’ exact chemical and flow rate requirements. The ChemiGuard Chemical Dosing Cabinets provide safe containment for new chemical dosing systems and new pipeline installs and can also be easily retro-fitted into existing equipment.

Internal components can be configured to meet customers exact requirements. Available in a range of colours to allow for easy on-site identification and eliminating potential cross contamination of liquids.

115 ChemiGuard Dosing image 1
115 ChemiGuard Dosing image 2

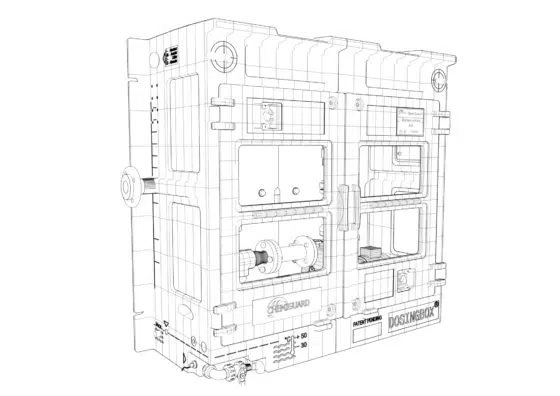

115 ChemiGuard Dosing Cabinet illustration Side scaled
115 ChemiGuard Dosing Cabinet illustration front scaled
115 ChemiGuard Dosing Cabinet Colour side scaled
115 ChemiGuard Dosing Cabinet Colour Front scaled
Video Thumbnail
Video Thumbnail
115 ChemiGuard Dosing image 1
115 ChemiGuard Dosing image 2
115 ChemiGuard Dosing Cabinet illustration Side scaled
115 ChemiGuard Dosing Cabinet illustration front scaled
115 ChemiGuard Dosing Cabinet Colour side scaled
115 ChemiGuard Dosing Cabinet Colour Front scaled

Features and Benefits

  • Secure housing for chemical dosing systems & transfer systems
  • Containment of any spillage and leaks
  • Lockable doors with clear viewing windows
  • Product label fixed to front of cabinet to clearly identify liquid stream
  • Compatible with all brands of pumps
  • Cabinets include integrated bund and drain valves
  • Available in 3 different sizes with 1, 2 or 3 access doors
  • Dimensions and weight (empty)
  • Technical Drawings
  • Applications
  Height (mm) Width (mm) Depth (mm) Empty Weight (kg)
Dosing Box 1 door 1400 1000m 550 30
Dosing Box 2 door 1400 1500 550 45
Dosing Box 3 door 1400 2200 550 60
  • Dosing systems
  • Chemical transfer systems

WHAT IS A CHEMICAL DOSING SYSTEM?

A chemical dosing system controls the dose rate of chemicals and additives in an automated process. Used across a broad range of precise applications demanding including; waste and clean water treatment, food and beverage manufacture and anaerobic digestion. ChemiGuard Dosing Cabinets provide safe and secure housing for Neptune Chemical Dosing Pumps.
